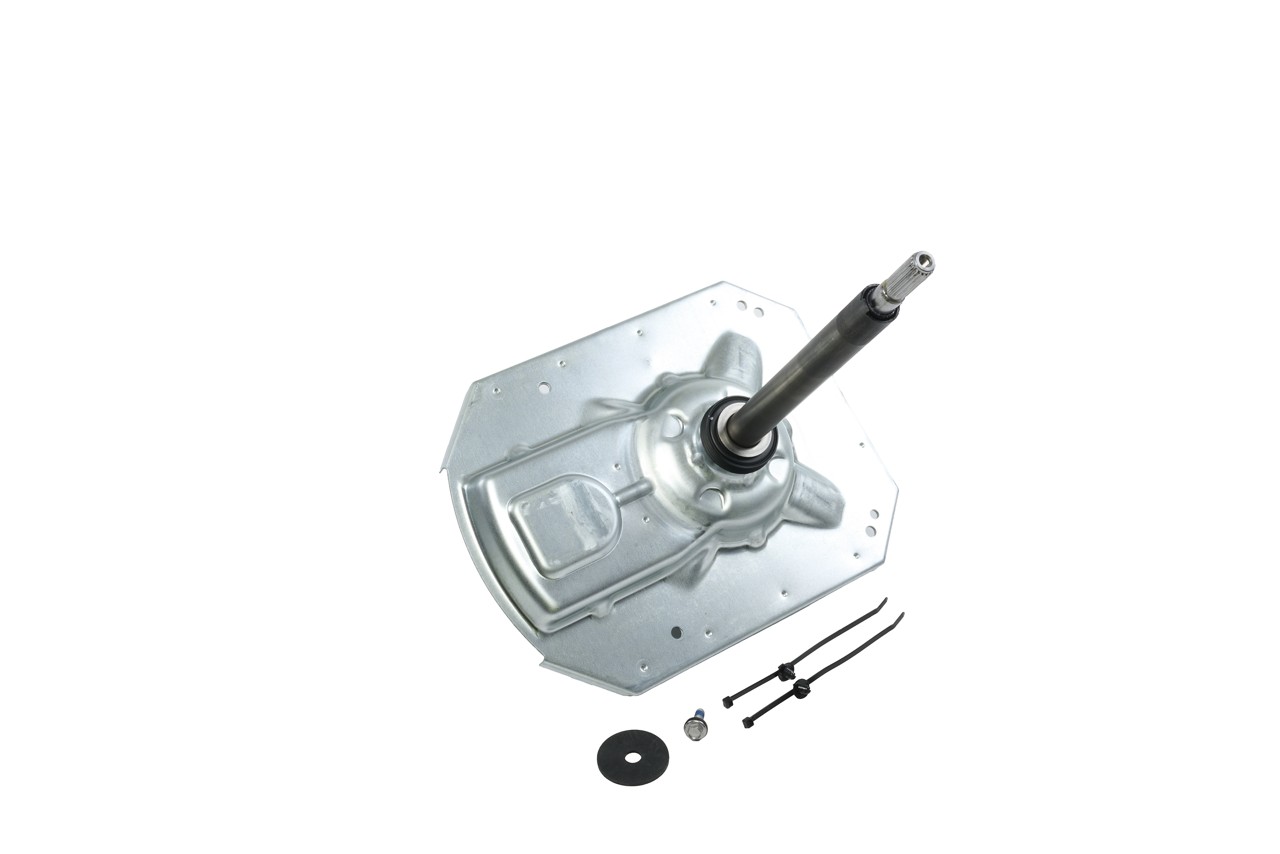

Part W11159068 Washer Transmission Gearcase
Purpose
Drives the agitator's motion and the high-speed spin of the inner basket.
Details
The W11159068 is a genuine OEM transmission assembly (also called a gearcase) designed for heavy-duty and commercial Whirlpool-manufactured top-load washing machines. As the mechanical heart of the washer, this unit converts the motor's rotation into the oscillating stroke of the agitator during the wash cycle and the high-velocity centrifugal force during the spin cycle. Over time, the internal gears can strip or the internal oil seals can fail, leading to significant mechanical issues. Common symptoms of a failing gearcase include a loud grinding or "roaring" noise during operation, a burning smell, or a washer that agitates but fails to spin (leaving clothes soaking wet). Because it includes the main drive shaft, bearings, and internal seals, replacing the entire gearcase is often the only permanent fix for these drivetrain failures.
Included Items
Complete Gearcase/Transmission Assembly with Shaft and Seal; Required tools: 7/16" and 1/2" sockets, spanner wrench (for the tub nut), and a screwdriver.
Compatible Brands
Whirlpool, Maytag, Kenmore, Amana, Admiral, Roper
Replaces
W11393687, W11261592, W11261590, W11092242, W11035750, W10850137, W10771763, W10521293
Highlights
- Genuine OEM part
- Application: Commercial and Residential Top-Load Washers
- Purpose: Mechanical drive for agitation and spin cycles
- Dimensions: Approximately 15" x 10" x 8"
- Installation difficulty: Hard (Requires complete tub teardown)
Safety Note
Always disconnect power and water supply before servicing. Follow model-specific diagrams and safety instructions for installation. This part is heavy; use caution when handling and ensure the washer is stabilized before beginning the teardown.
