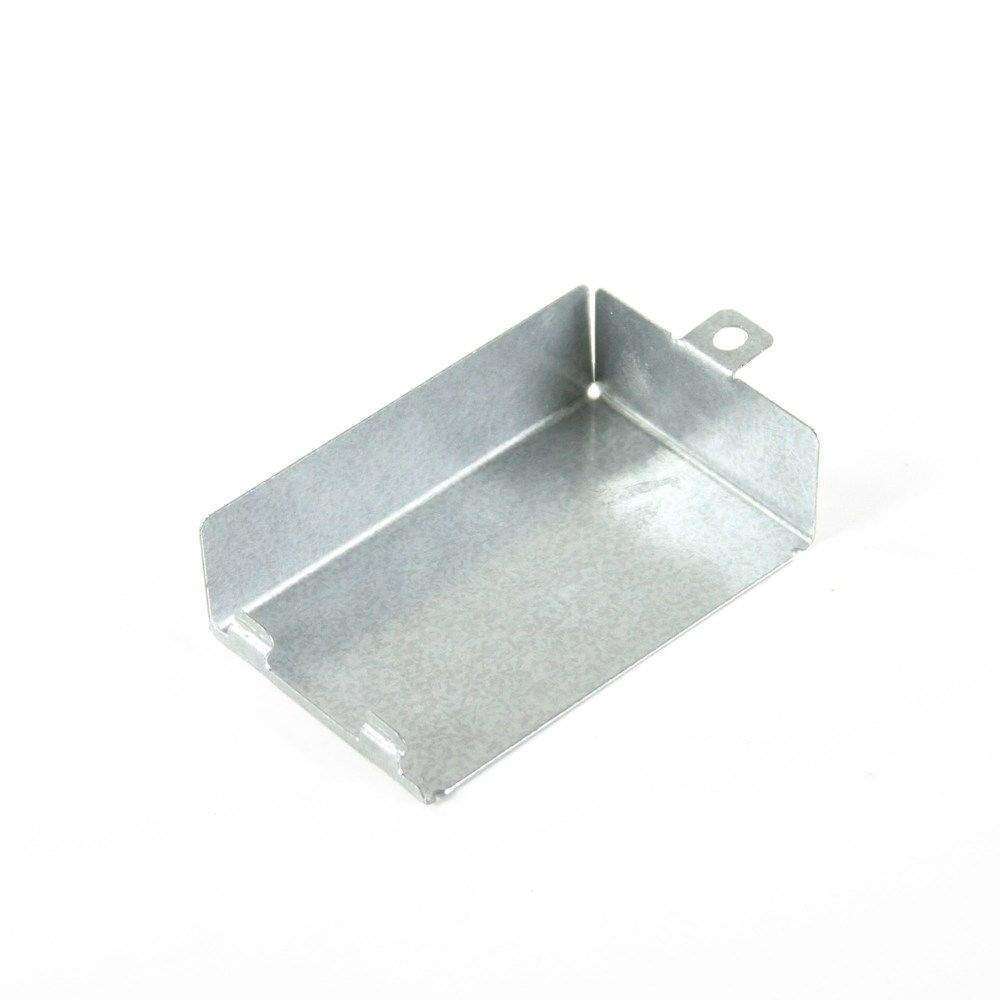

Part W11779375 Dishwasher Junction Terminal Box Cover
Purpose
Encloses and insulates primary electrical wire connections to prevent short circuits and moisture contact.
Details
The junction terminal box wiring cover is a vital safety hardware component located at the lower base of the dishwasher chassis. Positioned directly over the main electrical input terminal box where home power supply lines splice into the appliance wire harness, this metal or specialized composite shielding plate fully seals hot, neutral, and ground wires. It is designed to act as a fire-resistant barrier and to isolate raw high-voltage connections from external dampness, localized floor condensation, or direct water spray in the event of an under-tub pump leak. Over time, physical damage during dishwasher repositioning, accidental stripping of mounting screw slots, or metal corrosion caused by chronic moisture exposure can leave the cover warped or unable to latch securely. Operating an appliance with an absent or loose terminal cover poses a severe electrical short risk and safety hazard.
Included Items
Includes one genuine OEM junction terminal box cover shield with an integrated alignment flange. The specialized hex-head or Phillips grounding attachment screw must be transferred from the original assembly frame.
Compatible Brands
Whirlpool, Maytag, KitchenAid, JennAir, Amana, Kenmore, Magic Chef
Replaces
W11736701
Highlights
- Genuine OEM part
- Application: Dishwasher lower electrical utility compartment
- Purpose: Hardened safety barrier that isolates main 120V power supply splices
- Installation difficulty: Easy
Safety Note
CRITICAL SAFETY: Always isolate and trip the main home circuit breaker to completely shut off electricity to the appliance before removing the kickplate or servicing the junction area. Verify the wires are dead with a non-contact voltage meter prior to installation.
