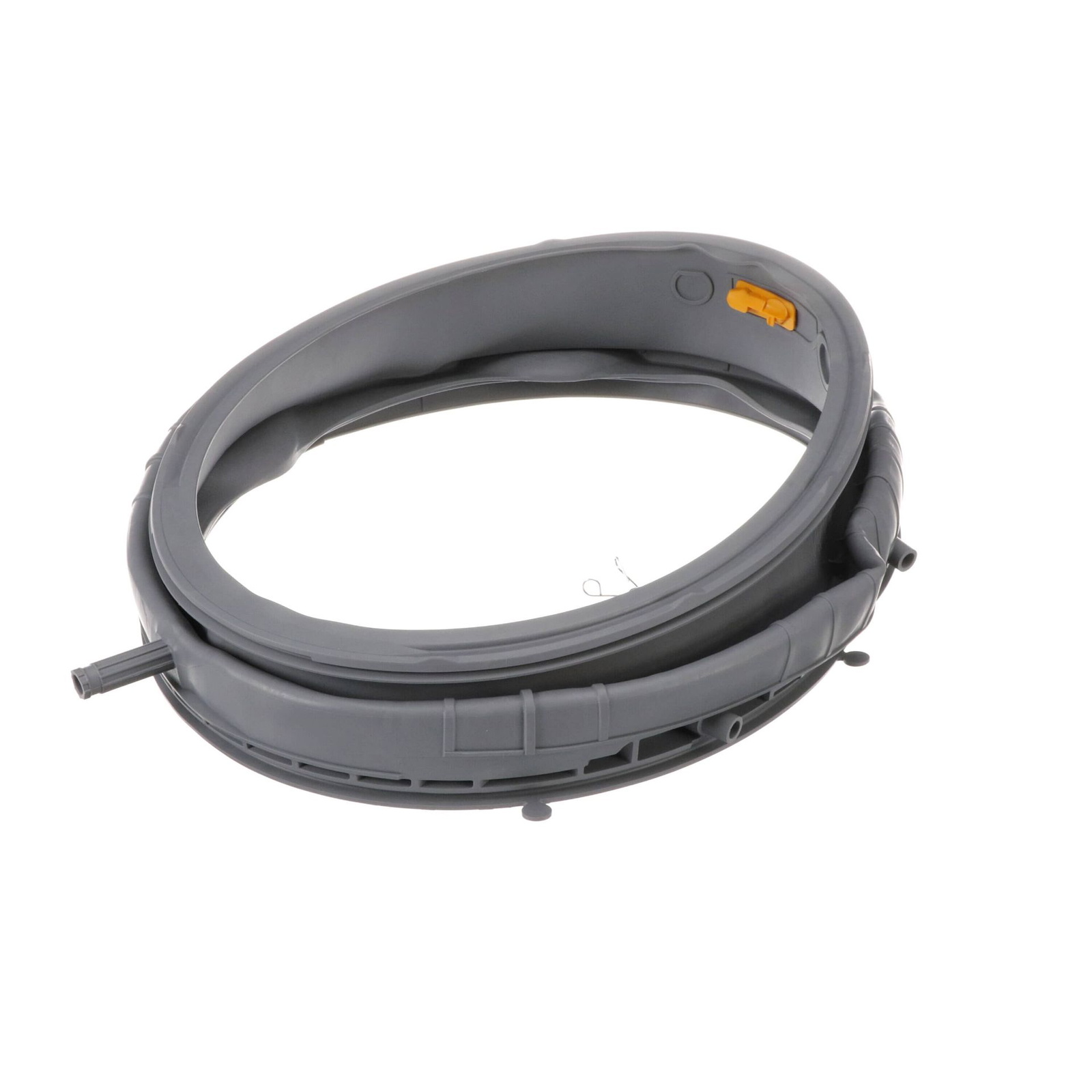

Part AGM30030702 Door Boot Turbo Gasket
Purpose
Creates a watertight seal between the door and drum while enabling TurboWash functionality.
Details
The AGM30030702 is a genuine OEM door boot seal (also known as a bellows or turbo gasket) designed for high-efficiency LG front-load washing machines. This specific "Turbo" version includes integrated ports or nozzles required for the machine's high-pressure spray features. Fabricated from heavy-duty, flexible synthetic rubber, it acts as a critical moisture barrier that prevents water from leaking into the cabinet and protects flooring from water damage. Common symptoms of failure include water pooling at the base of the door, visible mold or mildew accumulation, and tearing caused by friction or sharp objects caught in the wash. Replacing a worn gasket restores the unit's airtight integrity and prevents excessive vibration and noise during high-speed spin cycles.
Included Items
One (1) Door Boot Turbo Gasket; Required tools: Phillips-head screwdriver, flathead screwdriver, and a spring expansion tool (highly recommended for the inner/outer clamps).
Compatible Brands
LG
Replaces
AP7013917, AGM30030701, AGM30030704
Highlights
- Genuine OEM part
- Application: Front-Load Washing Machine (TurboWash Models)
- Purpose: Leak prevention and spray nozzle housing
- Dimensions: 15.9" L x 9.9" W x 6" H
- Installation difficulty: Hard
Safety Note
Always disconnect power and water supply before servicing. Follow model-specific diagrams and safety instructions for installation. Wear work gloves to protect hands from sharp metal edges on the front panel and cabinet frame.
