Part 661570V

Purpose

Dryer drum drive belt—powers drum rotation

Details

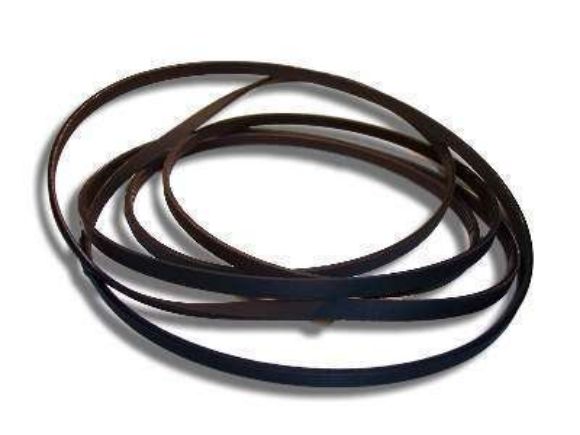

This OEM dryer belt is a long, narrow, ribbed loop designed to wrap around the drum, the tension pulley, and the motor pulley. Measuring approximately 93½ inches in length with a 4-rib, 3-groove profile, it translates motor power into smooth drum rotation. If the drum will not turn when the dryer is powered on, a broken or stretched belt is often the culprit—replacing it restores proper operation.

Compatible Models

Compatible with a wide range of Whirlpool-made dryers and select cross-brand units—including models from Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Crosley, Inglis, and Admiral—variations do occur; please confirm compatibility using your model’s parts diagram.

Replaces

Replaces part numbers 661570, 3387610, and 3393999—compatibility varies; always confirm with your model’s diagram.

Highlights

• OEM dryer belt—ensures tested strength and perfect fit
• Application: connects the motor to the drum via pulley system
• Purpose: enables smooth, reliable drum rotation
• Specification: approx. 93½" length, 4 ribs and 3 grooves
• Installation difficulty: Moderate (requires rear access to dryer and proper belt routing)—refer to service manual

Safety Note

Unplug the dryer before servicing. If the drum still won’t turn after belt replacement, check the idler pulley and motor shaft for damage or blockage.
