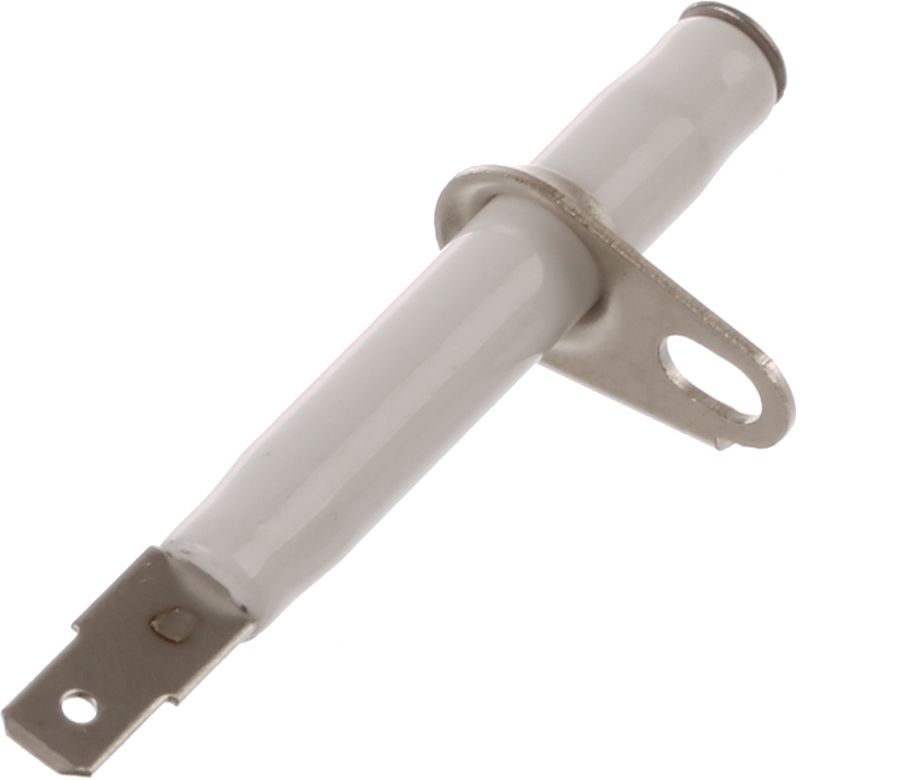

Part 00631633 Range Cooktop Burner Spark Igniter Electrode
Purpose
Ignites gas to light cooktop surface burners.
Details
The 00631633 Spark Igniter Electrode is responsible for producing the high-voltage electrical spark necessary to ignite the gas flowing to your range or cooktop burner. Positioned directly adjacent to the burner head, this top-mount electrode channels voltage from the spark module once the burner knob is turned to the "lite" position. Over time, the ceramic insulation can crack, food spills can cause heavy carbon fouling, or the internal metal pin can warp. When this component fails, common symptoms include a burner that continuously clicks without lighting, a spark that jumps to the wrong metal surface instead of the gas port, or a total absence of sparking on a single burner while others work correctly.
Included Items
6.35mm top-mount (G8) electrode assembly with attached lead wire. Required tools: Screwdriver, pliers.
Compatible Brands
Bosch, Thermador, Gaggenau
Replaces
4162041, AP5950372, PS10057850
Highlights
- Genuine OEM part
- Application: Range and cooktop gas ignition systems
- Purpose: Generates the necessary electric spark to light the surface gas burner
- Dimensions: 6.35 mm mounting configuration
- Installation difficulty: Moderate
Safety Note
Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation.
